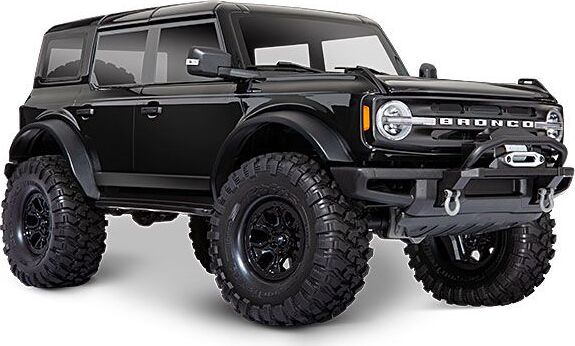

TRX-4® Scale and Trail™ Crawler with 2021 Ford Bronco Body: 4WD Electric Truck with TQi Traxxas Link™ Enabled 2.4GHz Radio System Black

After 25 years, the Bronco returns as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas captures the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

Battery and Charger Sold Separately

MODEL 92076-4: 1/10 Scale 4X4 Trail Truck, Fully-Assembled, Waterproof electronics, Ready-To-Drive®, with TQi™ 2.4GHz 4-channel Radio System, XL-5 HV Speed Control, Hi/Low Transmission, Remote Locking Differentials, and painted body

Ford Officially Licensed Product - Ford Motor Company Trademarks and Trade Dress used under license to Traxxas.

Model Specs

• Model Name: TRX-4 2021 Bronco
• Model Type: Trail / Crawler
• Model Skill Level: 1
• Scale: 1/10
• Weight: 6.42 pounds (2.91 kg)
• Length: 22.98 inches (584 mm)
• Width: 9.78 inches (249 mm)
• Front Track: 9.78 inches (249 mm)
• Rear Track: 9.78 inches (249 mm)
• Height: 9.4 inches (239 mm)
• Wheelbase: 12.8 inches (324 mm)
• Center Ground Clearance: 3.14 inches (80 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: 2-speed high/low, remote shifting
• Differential Type: 4 gear, remote locking
• Gear Pitch: 32 pitch
• Servo(s): 2075X metal gear, digital high-torque waterproof
• Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
• Battery Compartment Specs: 159 mm X 47 mm X 23 mm

Motor Specs

• Motor Name: Titan® 21T Reverse Rotation
• Motor Type: High-torque brushed motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
• Motor Diameter: 1.53 inches (39 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet

ESC Specs

• ESC Name: XL-5™ HV
• ESC Type: Brushed
• ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
• ESC Weight: 2.60 ounces (74 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High-Current Connector
• ESC Power Wire: 14 gauge

FEATURES

• Officially Licensed 2021 Ford® Bronco Body
  • Two-tone paint with black roof and clear windows
  • LED-ready headlights and tail lights with multi-function capability
• Scale details
  • Black molded grille with white Bronco logo
  • Replica hood cowl w/ wipers and folding mirrors
  • Replica spare tire mount
  • Replica door handles
  • Tough PVC fender flares, wheel wells, and floor pans
  • Front and rear Bronco bumpers with skid plate and replica winch
• Clipless Body mounting
  • Clipless design for smooth body appearance
  • Rugged internal body cage for added rigidity
  • Body details mount directly to internal frame
• Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Traxxas EZ-Set® one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
  • Two stage low voltage protection (LVD)
• Five drive profiles
  • Sport Mode — forward / brake / reverse
  • Race Mode — forward / brake / no reverse
  • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
• Titan® 550 Motor
  • Powerful Titan 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• TQi™ 2.4 GHz Radio System
  • 4-channel transmitter
  • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • Patented waterproof receiver box with easy-access plug
• Rigid Steel Frame
  • 1.5 mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front — 3 link with panhard
  • Rear — Triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5 mm diameter steel link rods with 4 mm threaded ends
• Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Wheels and Tires
  • Replica black 2021 Bronco wheels
  • Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12 mm steel hex
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating
• Requires Battery and Charger (Sold Separately)
