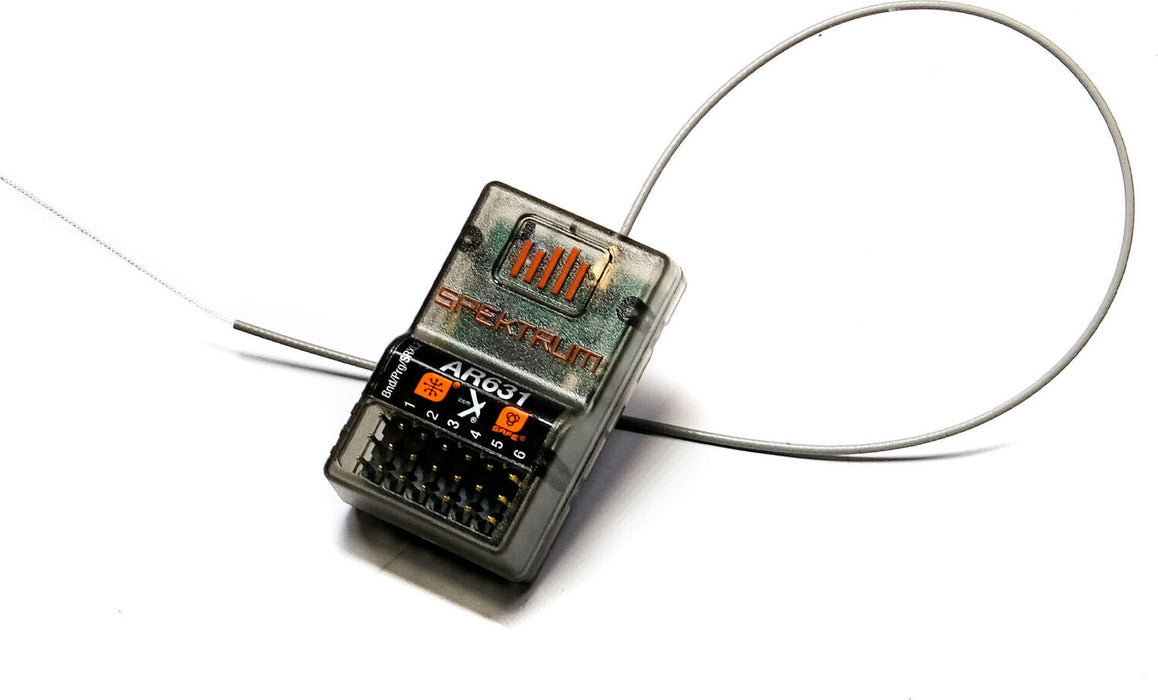

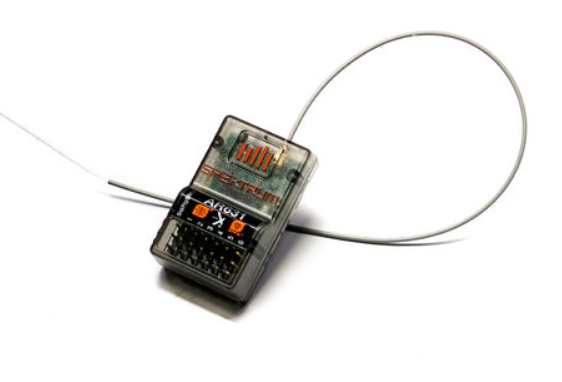

AR631 DSMX 6-Channel AS3X & SAFE Receiver

Spektrum - SPMAR631

Extra-long 230mm Antenna for more versatile installation options

• Built in AS3X Stabilization System with SAFE flight envelope protection
• AS3X and SAFE set up through forward programming directly from your Spektrum transmitter
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• DSMX protocol receiver with DSM2 backwards compatibility

Product Details

In The Box

(1) Spektrum AR631 AS3X Telemetry Receiver
(1) Product Manual

Needed to Complete

(1) Spektrum Telemetry Capable Transmitter

Product Specifications

Channels: 6
Modulation: DSMX
Telemetry: Yes
Data Port: Yes
Flight Log Compatible: Yes
Integrated Variometer: No
Range: Full
Bind Method: Bind Button
Forward Programming: Yes
Telemetry Range: Fly-By
Product Length: 1.53" (39 mm)
Band: 2.4GHz
Product Application: Air, Sailplanes
Product Height: 0.55" (14 mm)
Resolution: 2048
Serial Out: SRXL2
Input Voltage: 3.5 - 9V
Antenna Length: 9" (229 mm)
Technology : SAFE / AS3X
Application: Airplane, Sailplane
Product Weight: 0.28oz (8g)
Product Width: 0.94" (24 mm)
Remote Receiver Ports: 0
