Castle Creations B-Link 2™ Bluetooth® Interface

Program, update, and fine-tune your Castle ESCs wirelessly - anywhere. The B-LINK 2 Bluetooth Interface builds on years of real-world feedback to deliver faster connections, expanded compatibility, (including the Cobra Series), and a fresh, intuitive app experience. Castle's FREE APP DOWNLOAD (Castle Link 2) is readily available in the Apple App Store and Google Play!

---

Includes:

• B-Link 2 Bluetooth Interface Adapter

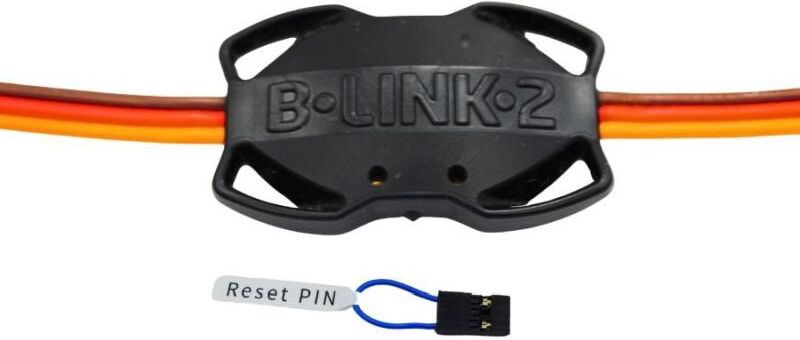

• Re-set plug

---

Features:

• Total Control in the Field: Adjust ESC parameters, view data logs and update firmware - no laptop required.
• Architecture & App: Rebuilt from the ground up for smoother performance and a modern look.
• Cobra-Ready: Fully compatible with every Castle Cobra ESC plus Talon, Copperhead, X-Series, most Mamba and Sidewinder ESCs, and CC BEC Pro / CC BEC 2.0.
• Secure & Convenient: Waterproof, passcode protected and compact enough to leave installed.
• Seamless Syncing: Optional free account lets you sync profiles of multiple vehicles and data logs across devices/models.

---

Technical Specs:

• Input Voltage:Minimum: 4.5V - Maximum: 13V
• Max Cont. Current: 10A
• Max Burst Current: 20A
• Dimensions (with wires): 7.4" x .52" x .06"
• Dimensions (w/o wires): 1.0" x .52" x .06"
• Weight: 8g /.28oz
• Operating Environment: Waterproof design, allowing it to stay installed in the model or be easily swapped between models.
• Items Needed for Operation: Castle Link 2 App found at Apple App Store or Google Play and a compatible Castle ESC and/or Accessory.
• Tech Notes: The B-Link2 Bluetooth Interface is not compatible with Castle Telemetry Link for Spektrum X-Bus and Castle Telemetry Link for Futaba S.Bus2. The B-Link2 can be used to adjust settings on the ESC; but it cannot be run in conjunction with the Telemetry Links.
