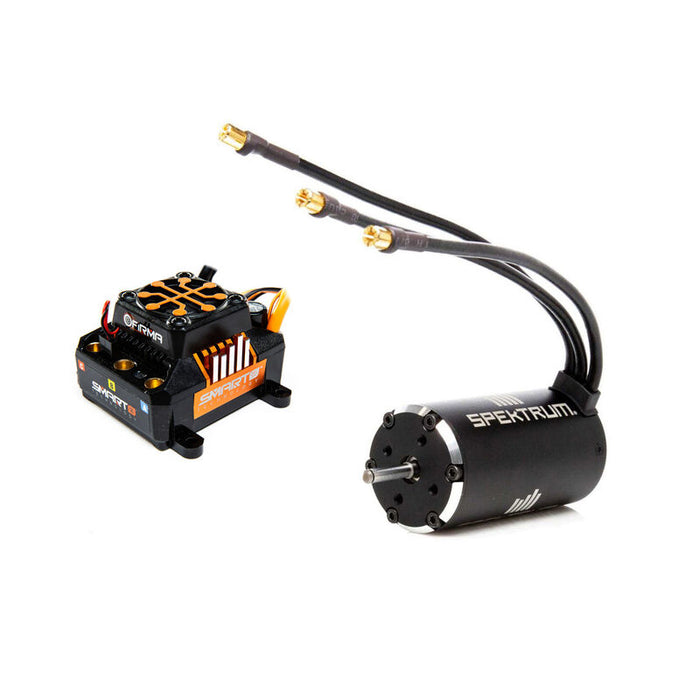

FIRMA 160A BL Smart ESC/1250Kv Sensorless MotCombo

Spektrum - SPMXSEMC06

The Firma 160A Brushless Smart ESC / 1250Kv Sensorless Motor Combo by Spektrum is a quality built accessory.



Product Specifications

BEC: Yes
BEC Voltage: 6V
Kv Rating: 1250-1499Kv
Motor Output Lead: 6.5
Product Application: Surface
Product Height: 1.8" (44mm), ESC
Recommended Speed Control: Spektrum Firma 160 Smart ESC
RPM/Volt (Kv): 1250Kv
Sensor Type: Sensordless
Battery Input Lead: IC5
Outer Diameter: 1.8" (46 mm)
Product Width: 3.03" (77mm), ESC
Technology : Smart
Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen
Brakes: Yes
Integrated ESC: No
Programmable: Yes
Application: Surface
Auto Cutoff: Yes
BEC Continous Current: 5
Low-Voltage Cutoff Programmable: Yes
Number of Poles: 4
Output: 6300W
Overload Protection: Yes
Shaft Diameter: 3/16" (5mm)
Motor Class: 1/6 Scale
Connector Type: IC5
Efficiency: 90%
ESC Type: Brushless
Wire Gauge: 10 AWG
Product Length: 2.7" (70mm), ESC
Constant Wattage: 3000W or more
Maximum Burst Current: 1050A
Motor Type: Brushless
Amperage: 120A or larger
BEC Type: Switch Mode
Motor Design: Inrunner
Max Input Voltage: 29.V
Reverse: Yes
Bushing Or Bearing: Bearing
Forward: Yes
