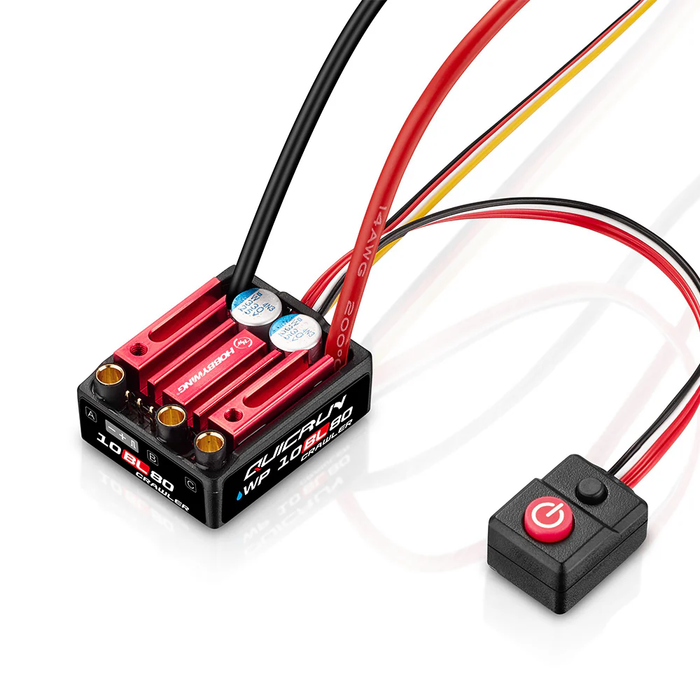

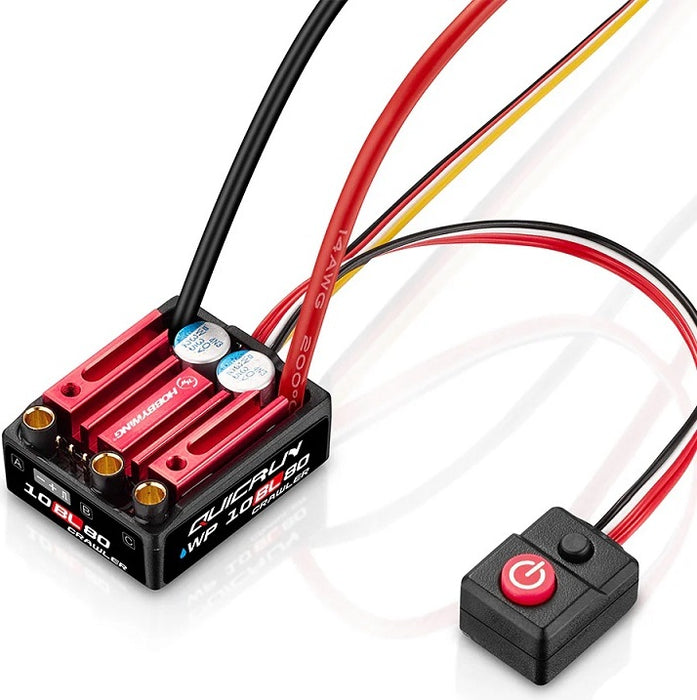

QUICRUN 10BL80 Crawler

ESC serves both Brushed & Brushless Crawlers
Compact, Powerful, and Capable: 4S/80A performance in a 36x30x15.5mm package. Superior low-speed torque and smooth operation for 1/10th scale crawling.

---

Includes:

• 1x WP 10BL80 Crawler ESC

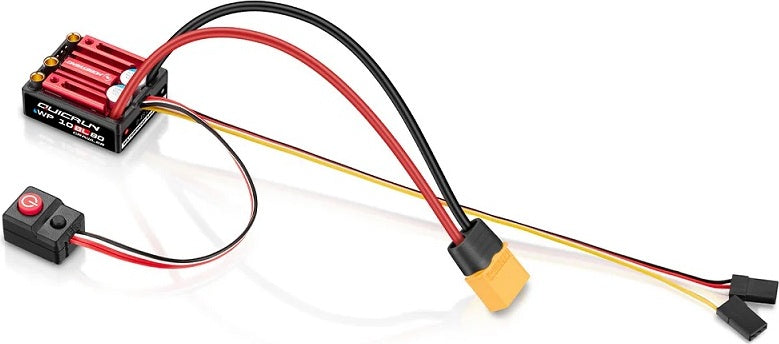

• Factory-installed XT60 plug
• 1x Decal and Manual
• 1x Heatshrink kit, double-sided tape, and zip ties.

---

Features:

• It supports Sensorless Brushless motors & Brushed Motors.
• Compatible with most brushed or brushless motors on the market.
• Fully waterproof design for all conditions.
• Super internal switch-mode BEC with switchable voltage of 6V/7.4V/8.4V for usage with high torque and high voltage servos.
• Separate programming port to easily connect the LED program box or the LCD program box pro to the ESC.
• Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and fail safe (throttle signal loss protection).
• It has the function of using transmitter (AUX channel) to adjust the drag brake force in real time.

---

Specifications:

• Continuous/peak current: 80A/240A
• Motor Type: Sensorless brushless motor, and brushed motor
• Applications: Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors
• LiPo Cells: 2-4S LiPo
• BEC Output: 6.0V/7.4V/8.4V, 5A
• Size: 36(L)*30(W)*15.5(H)mm
• Weight: 47.8g (included wires & connectors)
• Programming Port: Independent programming port
