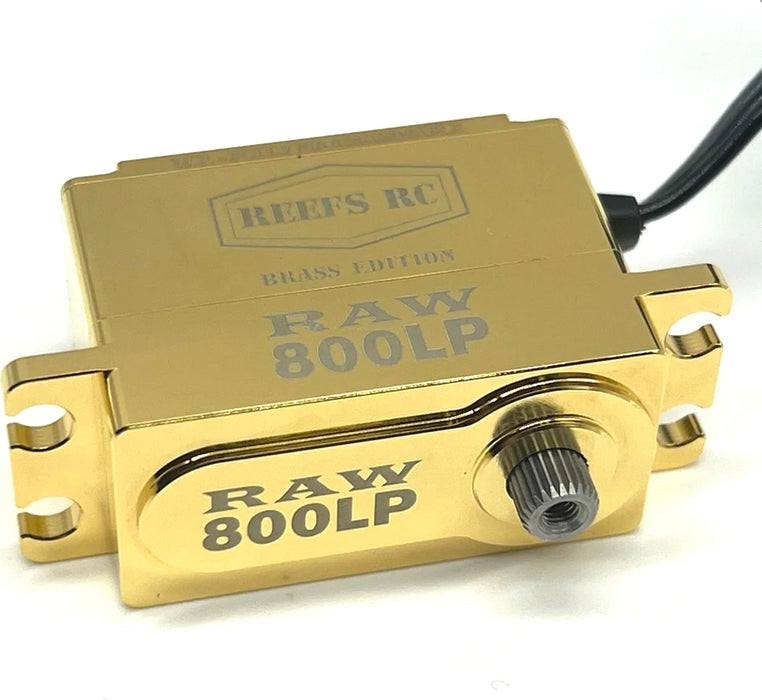

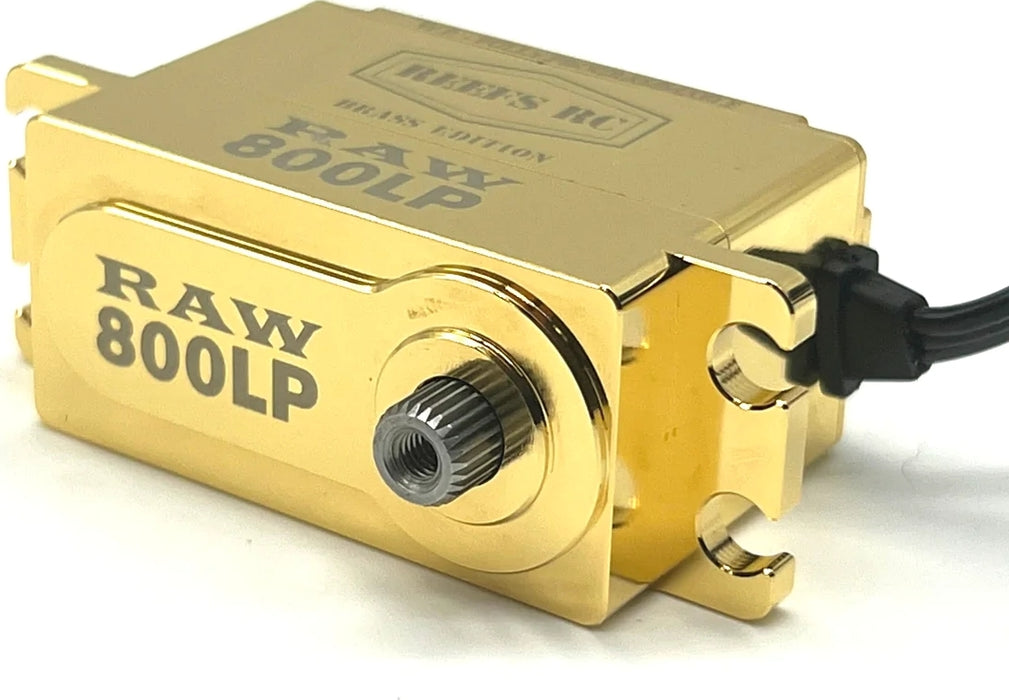

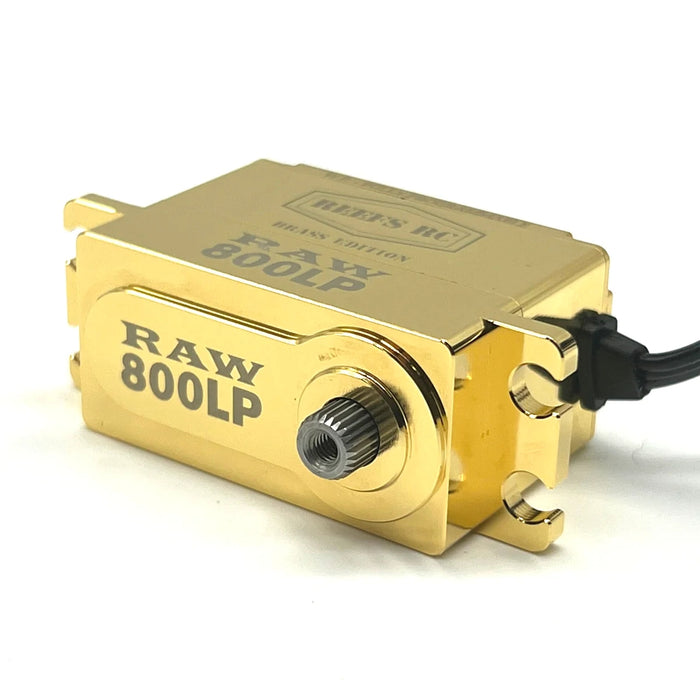

RAW800LP Brass Edition, Fully Programmable, Brushless Low Profile Servo

RAW800LP Brass Edition, Fully Programmable, Brushless Low Profile Servo

by Reefs RC
Sale Sale
$219.00
$219.00 - $219.00
$219.00
$199.00
$199.00 - $199.00
$199.00
Note: BEC not required, but recommended for best performance.

Specifications:
  • Motor: 4 POLE - Brushless
  • Submarine Waterproof: 7 Point Seals
  • Positioning: Magnetic Angle Sensor
  • Voltage: 4.8V - 8.4V
  • Programmable: REEFS LINK required for Programming (Optional)
  • Gears: Steel Gears
  • Spline: 25T / Dead Band Width: 2 µ
  • Case: CNC Aluminum Casing
  • Bearing Type: 2 Ball Bearings
  • Weight: 2.3oz / 66gm
  • Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
  • Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
  • Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
  • Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
  • Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
