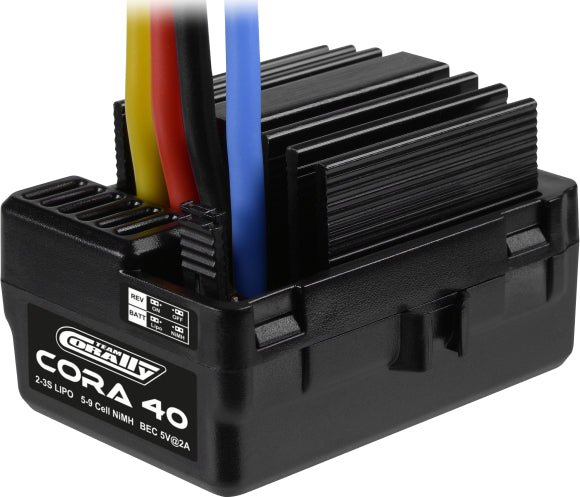

CORA 40, Brushed ESC, 2-3S, fits SP Versions

Max. Cont. Current (A): Forward: 40 A / Reverse: 20 A
Motor Limit: 2S = 12T 3S = 18T
Input Voltage (V) min. - max.: 5-12.6 V
Max. Current (A): Forward: 180 A / Reverse: 90 A
Resistance: Forward: 0.002 Ohn / Reverse: 0.004 Ohm
Length (mm): 46.5 mm
Nr of Li-xx Cells: 2-3S
Width (mm): 34 mm
Nr of Ni-xx Cells: 5-9 Cell NiMH
Motor Type: Brushed
Height (mm): 28.5 mm
BEC Voltage (V): 6 V
BEC Current (A): 2 A
Weight incl. wire (g): 65 g
Programmable: Jumper
Throttle Mode: Forward / Reverse programmable Reverse lockout
Battery Mode: NiMH / LiPo
Cut off voltage: NiMH mode = 4.5 V
Lipo Cut off: 2S = 6.5 V 3S = 9.75 V
Thermal Protection Temperature: 105 Degrees C
Water Protection: Yes
Connector (Motor): 4 mm
Connector (Battery): Tamiya style
Motor wire size: 16 AWG
Battery wire size: 16 AWG
Car Type Use: 1/10th scale
