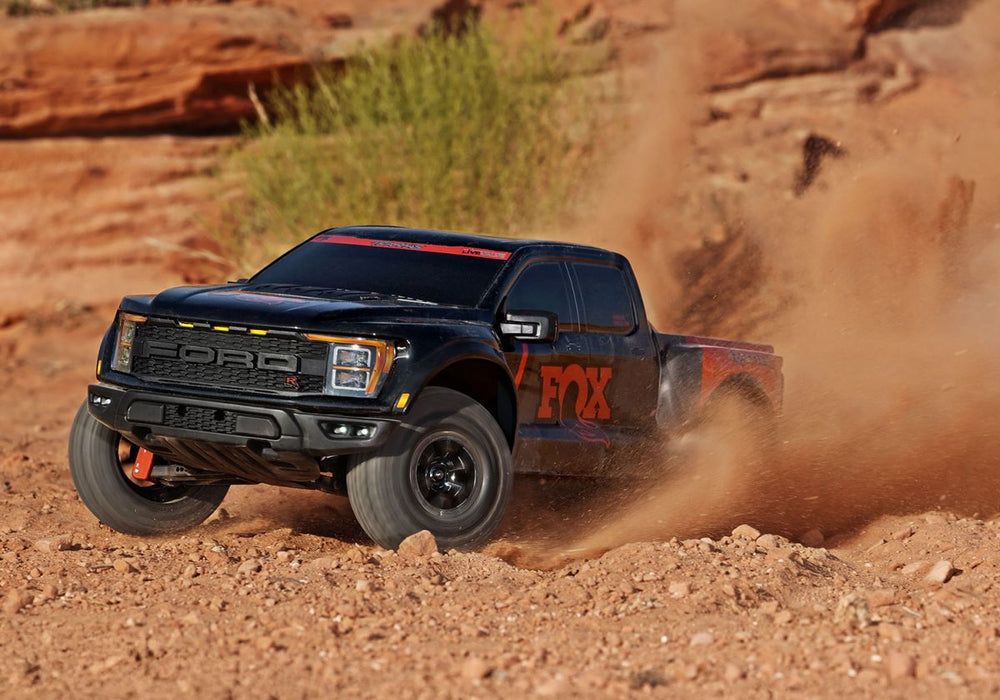

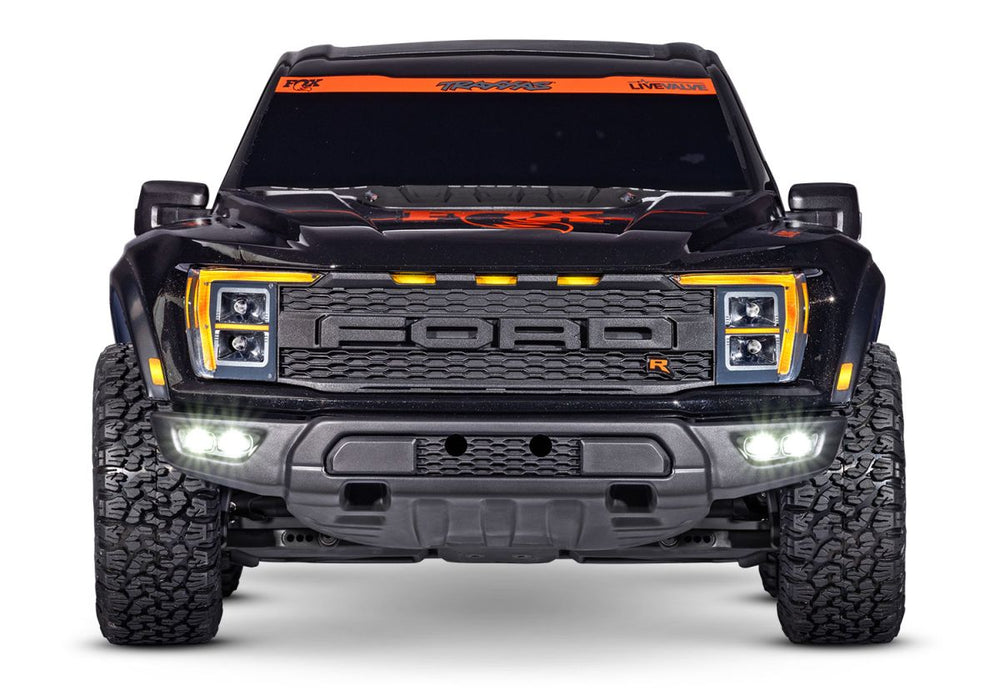

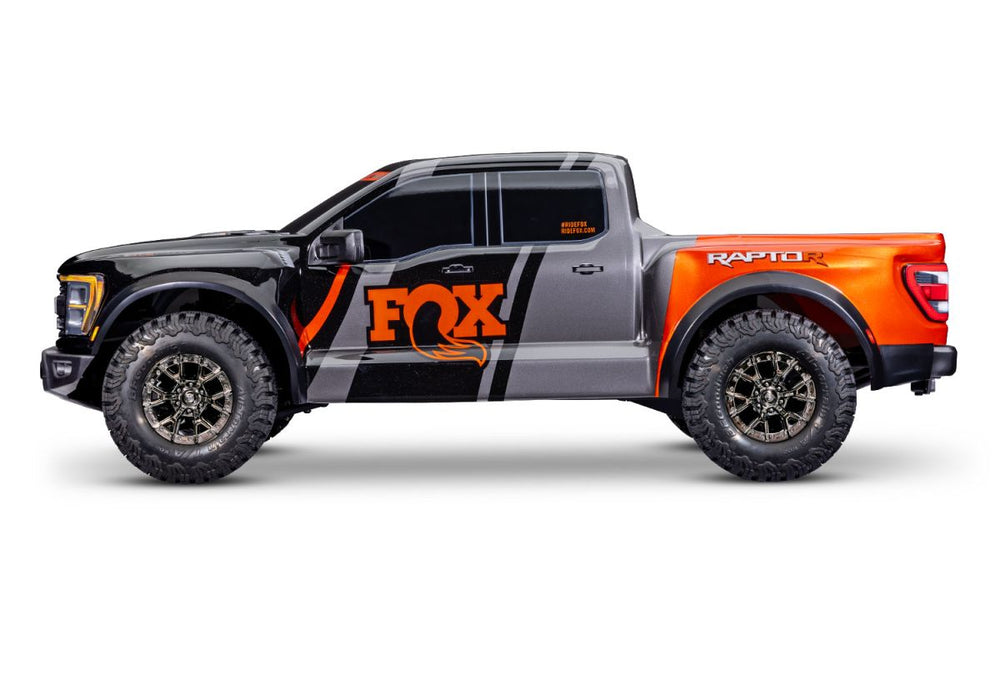

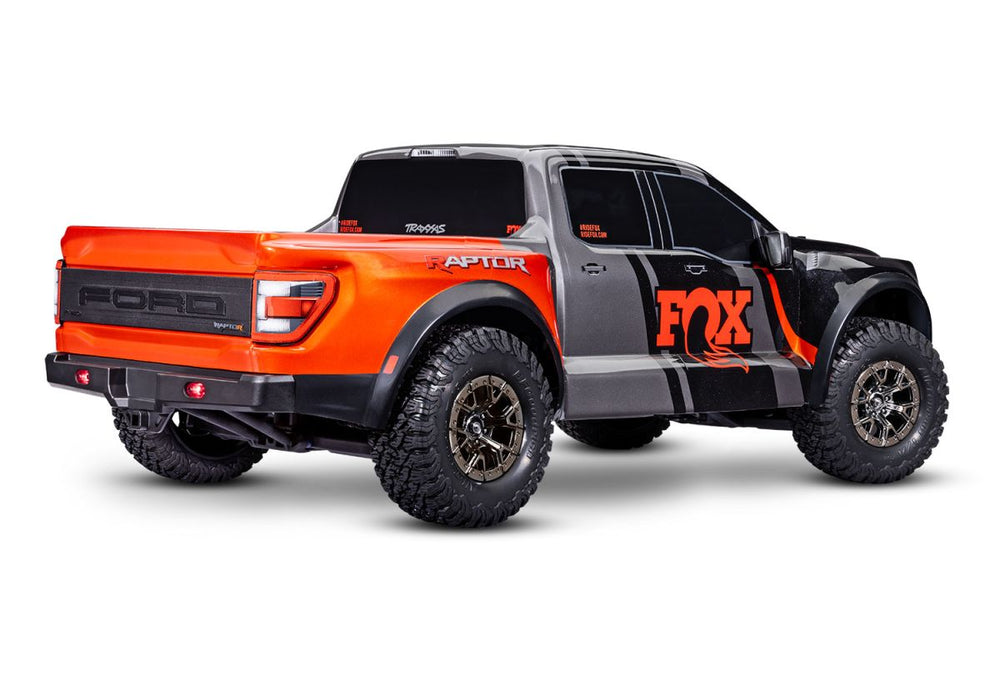

Traxxas Ford® Raptor R™ 4X4 Ultimate (Model #101177-4)

Scale: 1/10 | Drivetrain: Full-Time Shaft-Driven 4WD | Top Speed: 60+ MPH (with 4S LiPo)

Overview

The Traxxas Ford Raptor R 4X4 Ultimate combines authentic scale realism with extreme 4S brushless power. Outfitted with premium aluminum upgrades, high-performance electronics, and an officially licensed Pro Scale® Ford Raptor R body, this short course truck delivers extreme speed, durability, and handling.

Key Features & Highlights

• Pro Scale® Officially Licensed Ford® Body: Features realistic molded scale details including custom bumpers, front grille, tailgate, side mirrors, and hood vent, paired with pre-installed LED lighting in the front and rear bumpers.

• Clipless Body Mounting System: Quick and easy body removal with a smooth, scale appearance that eliminates body posts and clips while remaining secure during high-speed action.

• Factory-Installed Aluminum Upgrades: Equipped with heavy-duty 6061-T6 color-matched anodized aluminum steering blocks, C-hubs, and rear hub carriers for maximum strength and endurance.

• Velineon® 4S Brushless Power: Powered by a Velineon 540XL 2400 Kv 4-pole motor and a VXL-4s™ waterproof speed control, launching the truck to speeds exceeding 60+ MPH.

• Aluminum GTR Shocks: Extra-large capacity oil-filled GTR shocks feature threaded aluminum bodies with TiN-coated shock shafts for smooth suspension performance on rugged terrain.

• Traxxas Stability Management® (TSM): Helps maintain control on slippery surfaces by providing steering corrections during hard acceleration and braking without limiting throttle response.

• TQi™ 2.4 GHz Radio System with Wireless Module: Includes factory-installed telemetry sensors and a Traxxas Link Wireless Module for real-time data monitoring and tuning via your smartphone.

• Heavy-Duty Drivetrain: Built with Maxx-Duty driveshafts, sealed oil-filled steel gear differentials, a torque-biasing center drive with 20M-weight oil, and oversized 6 mm axles.

• Licensed Tires & Wheels: Replicate the full-scale original with licensed replica wheels wrapped in high-traction BFGoodrich® All-Terrain T/A® KO2 tires.

Technical Specifications

• Length: 24.98 inches (637 mm)

• Width: 11.63 inches (289 mm)

• Wheelbase: 15.11 inches (384 mm)

• Ground Clearance: 2.05 inches (52 mm)

• Weight: 6.62 lbs (3.00 kg)

• Motor: Velineon® 540XL Brushless (2400 Kv)

• ESC: Velineon® VXL-4s™ Waterproof ESC

• Servo: 2275 High-Torque Waterproof Metal-Gear Servo

What’s in the Box?

• Fully assembled Traxxas Ford® Raptor R™ 4X4 Ultimate Ready-To-Race® model

• TQi™ 2.4 GHz Radio System with Traxxas Link™ Wireless Module

• Velineon® VXL-4s ESC & 540XL Brushless Motor

• High-quality maintenance tools

What You’ll Need:

• Battery: Single 2S, 3S, or 4S LiPo Battery with Traxxas iD® connector

• Charger: Traxxas iD® Compatible LiPo Charger (EZ-Peak® Live recommended)

• Transmitter Batteries: 4 × AA Alkaline Batteries
