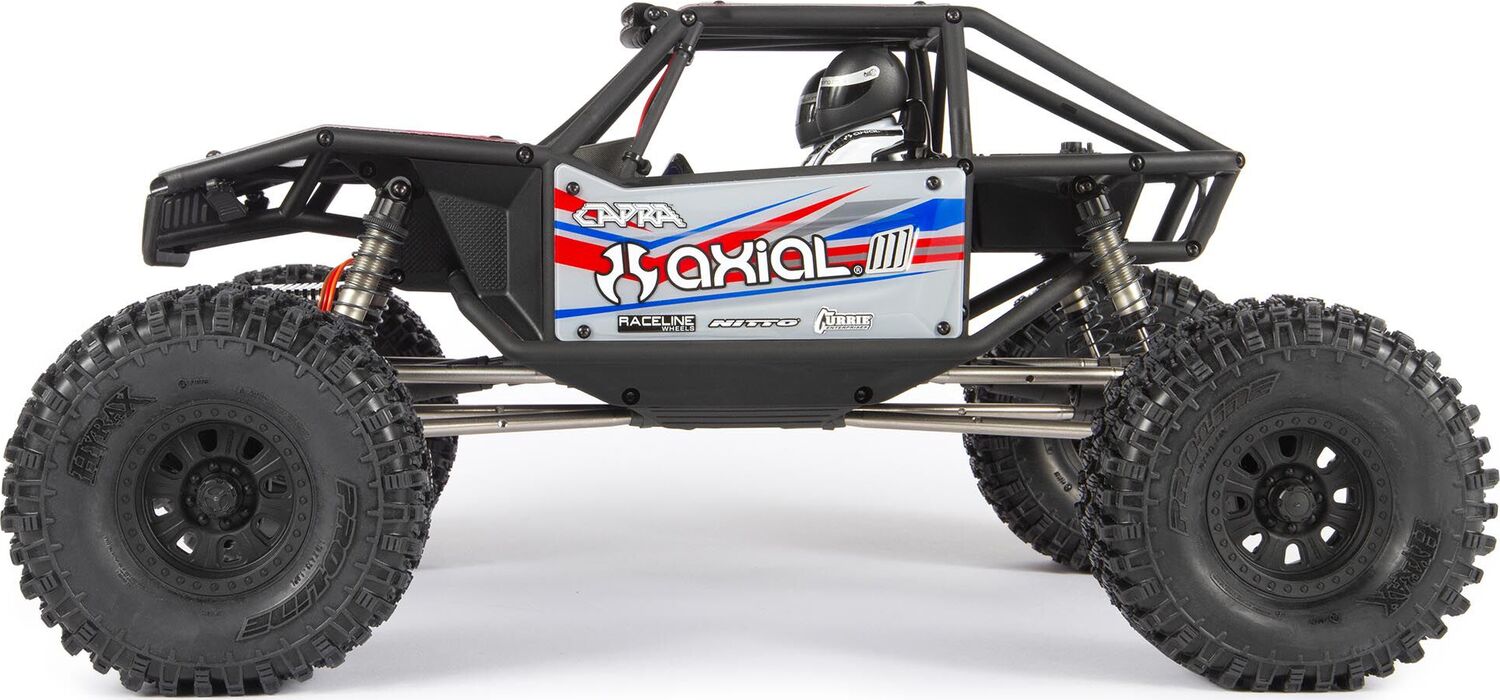

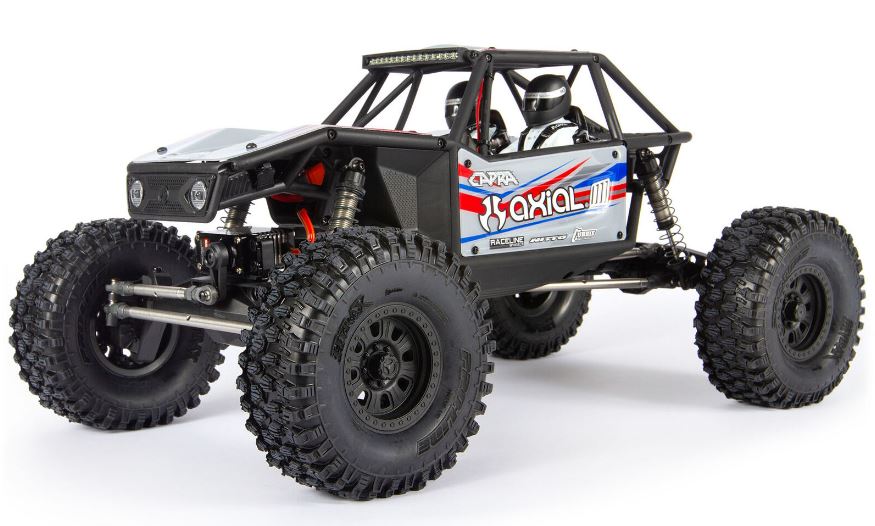

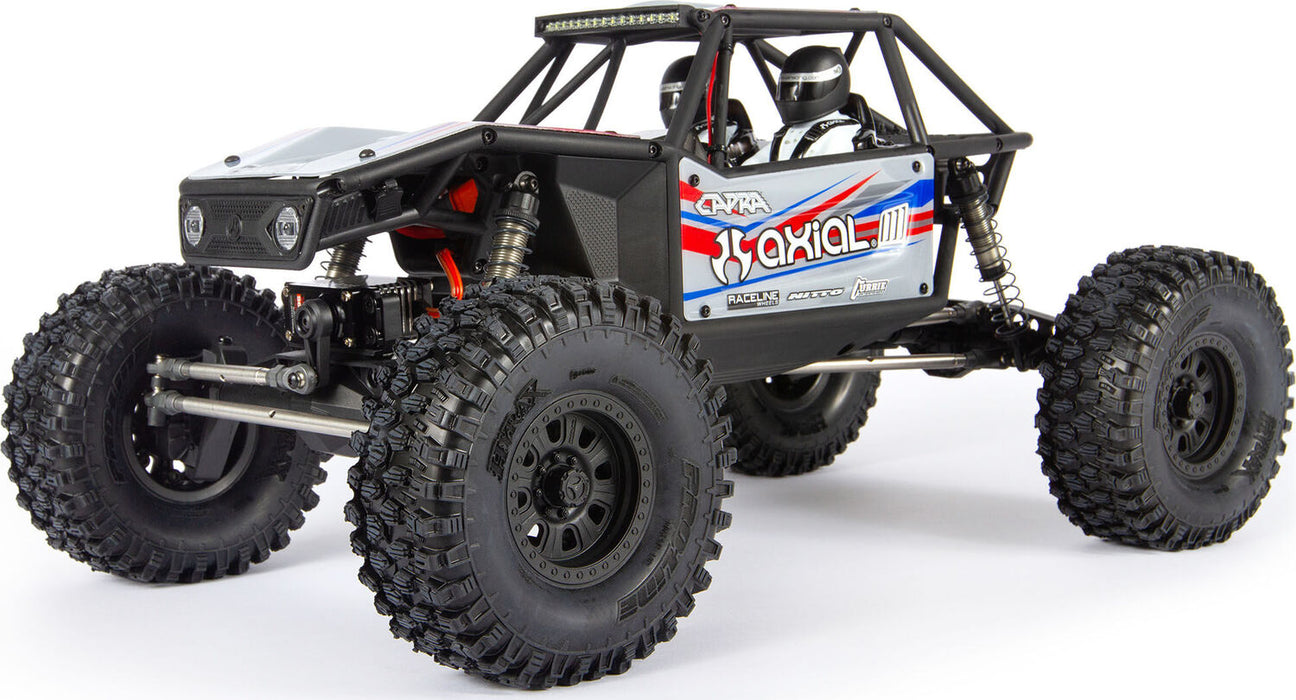

1/10 Capra 1.9 4WD Unlimited Trail Buggy Kit

Axial - AXI03004B

Newly designed transmission with Dig function enables a tighter turning radius by locking the rear axle for FWD power only

• Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance
• Includes all-metal gears, from the center transmission to the lockers and portal axles

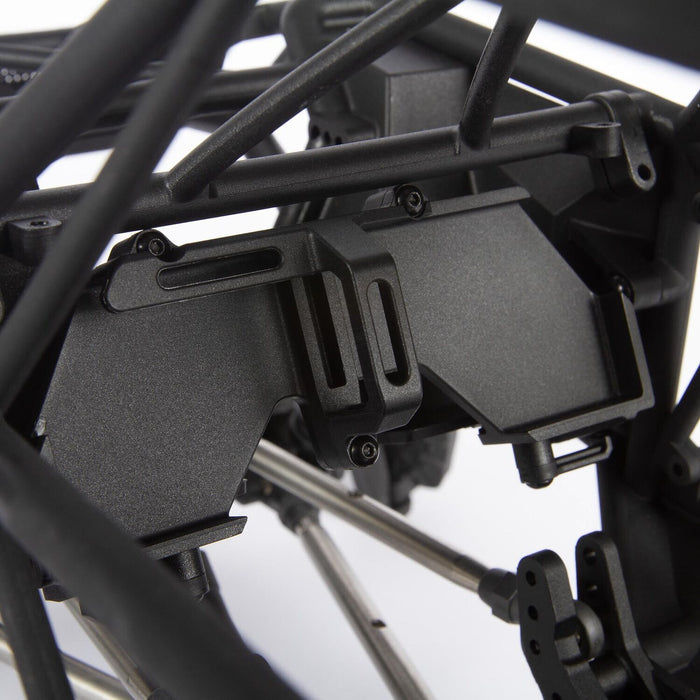

• Tube chassis design offers optimum clearance plus realistic scale looks
• Includes injection-molded, 3-piece, licensed Raceline beadlock wheels

Product Details

In The Box

(1) Axial® Capra™ 1.9 Unlimited Trail Buggy 4WD Kit
(1) Product Manual

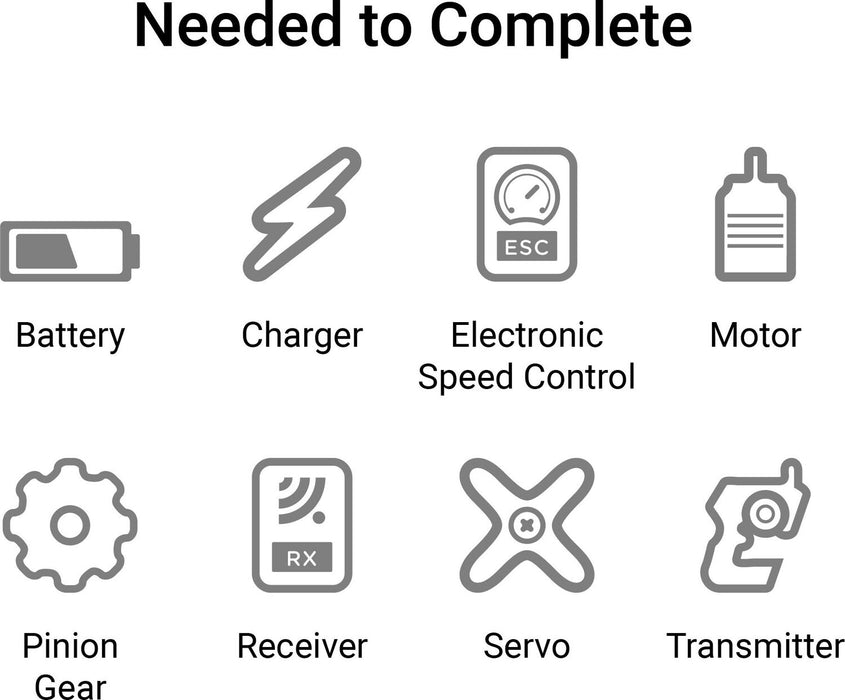

Needed to Complete

(1) 2+ Channel Transmitter with receiver
(1) Metal Gear, Hi-Torque Steering Servo
(1) ESC and Motor
(1) 14T Pinion Gear
(1) Battery
(1) Compatible Battery Charger
(1) Micro Servo (OPTIONAL, for Dig Function)
(4) Tires
Paint

Product Specifications

Max Battery Dimensions: 1.02 x 3.8 x 1.8" (26 x 98 x 47mm)
Receiver: Sold Separately

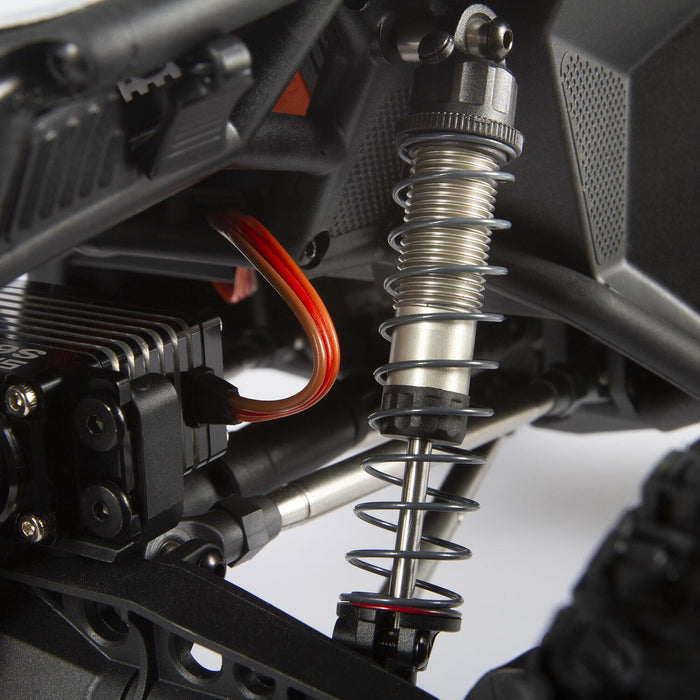

Shock Type: Aluminum body, oil-filled, coil-over spring, soft and firm springs included
Bushing Material: Metal
Charger: Sold Separately
Differential: Locked
Approximate Assembly Time: 7-10 Hours
Ball Bearings: Full set
Chassis: Injection molded tubular
Completion Level: Kit
Drivetrain: 4WD
Product Height: 8.25" (210 mm)
Tire Compound: Tires sold separately
Product Weight: 4lbs (1.8kg)
Vehicle Type: Rock Crawler
Water-Resistant: Yes
Battery: Sold Separately
Ground Clearance: 3" (76.2mm)
Internal Gear Ratio: 5.14:1
Motor Size: 540 sold separately
Product Length: 17" (432 mm)
Steering Type: 2WS
Suspension: 4-link with stainless steel pivot balls
Wheel Width: 1" (25.4mm)
Front Track: 8.75 in (222.2mm)
Product Width: 10.25" (260 mm)
Radio: Sold Separately
Power Type: Electric
Final Drive Ratio: 37:1
Rear Track: 8.75 in (222.2mm)
Gear Pitch: 32-Pitch
Body: Unpainted panels
Brakes: Integral with ESC
Pinion: 14T
Scale: 1/10
Speed Control: Sold Separately
Wheelbase: 12.5" (318 mm)
