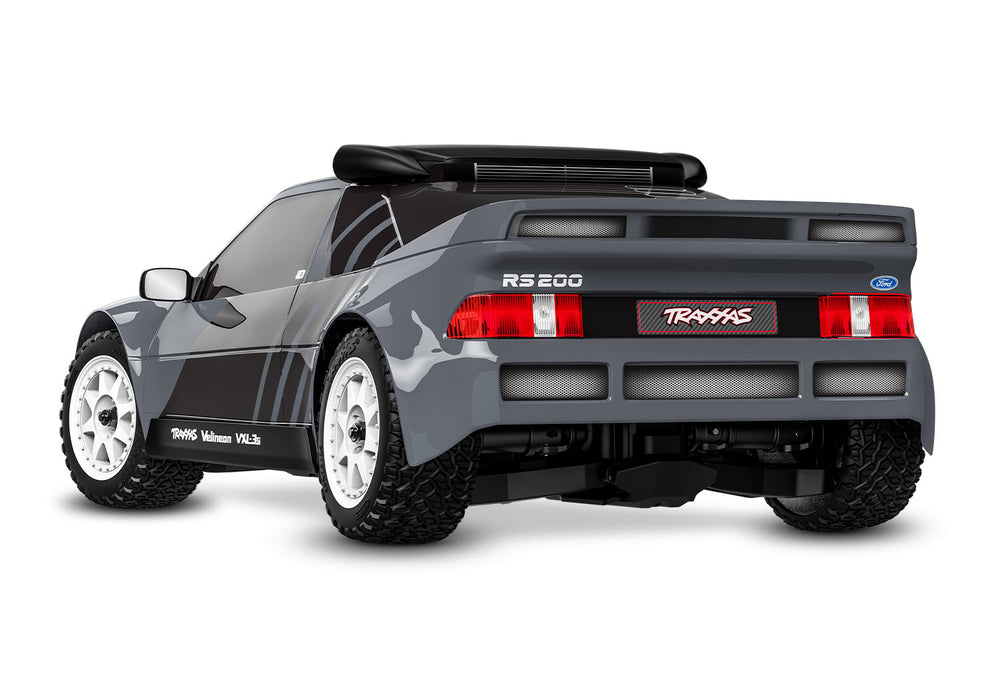

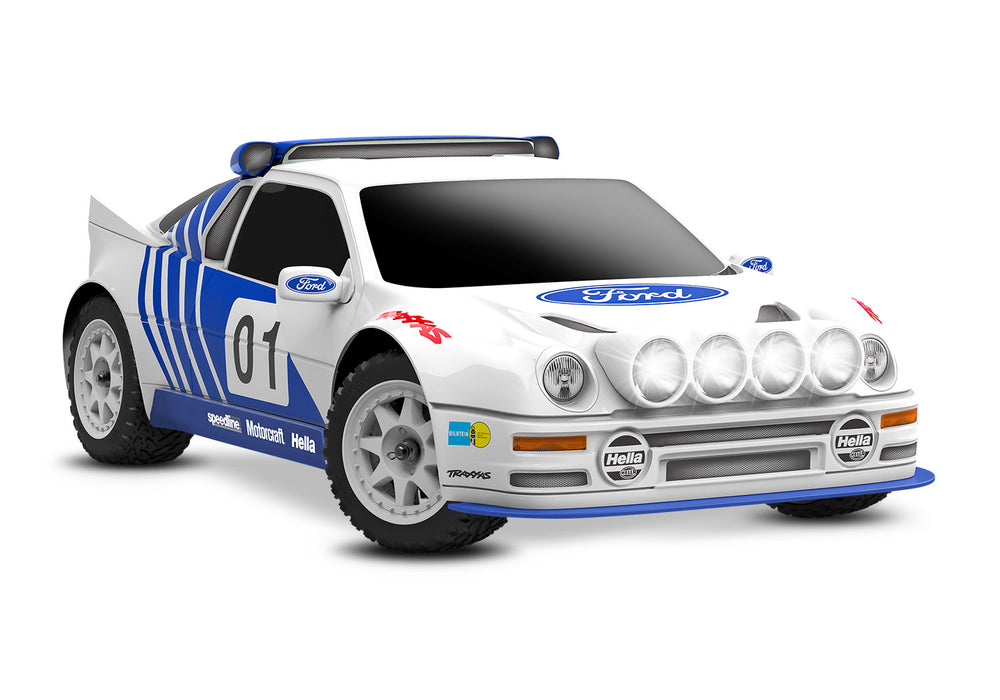

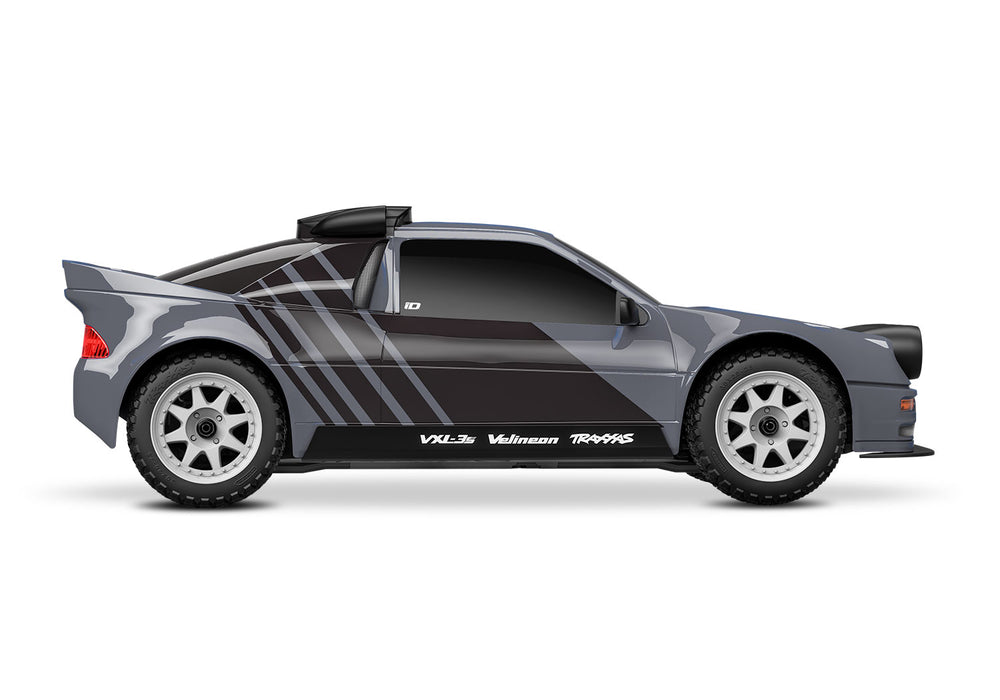

Mini Rally VXL Ford RS200
MODEL MODEL 108046-1 : Mini Rally VXL: mini-scale rally car with Ford® RS200 clipless body, fully assembled, Ready-To-Race® , with TQi™ 2.4 GHz radio system with TSM® , and Velineon® VXL-3s™ brushless power system. Includes 2-cell LiPo battery and 2-amp USB-C charger.
VIDEO
MODEL SPECS
Name:
Mini Rally VXL Ford RS200
Type:
Rally car
Top Speed:
40+ mph with included 2-cell LiPo. 55+ mph with optional 3-cell LiPo (sold separately)
Skill Level:
1
Scale:
Mini
Length:
16.38 inches (416 mm)
Width:
8.78 inches (223 mm)
Height:
5.71 inches (145 mm)
Weight:
4.04 pounds (1.83 kg)
Track:
7.20 inches (183 mm)
Wheelbase:
10.32 inches (262 mm)
Ground Clearance:
0.83 inches (21 mm)
Driveline:
Shaft-driven all-wheel drive
Transmission:
Direct drive, center differential
Differential Type:
Planetary, steel gear
Gear Pitch:
32
Steering Servo:
2075X
Radio System:
TQi 2.4 GHz (2-channel)
Battery Compartment Specs:
113 mm L x 41 mm W x 22 mm H
MOTOR SPECS
Name:
Velineon® 3500
Type:
Sensorless brushless
Weight:
9.24 ounces (262 g)
Length:
3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Diameter:
1.41 inches (36 mm)
Shaft Size:
3 mm
Connector Type:
3.5 mm bullet
ESC SPECS
Name:
VXL-3s electronic speed control
Type:
Brushless
Case Size:
1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
Weight:
3.17 ounces (90 g)
Motor Connectors:
3.5 mm bullet
Battery Connectors:
Traxxas High-Current Connector
Power Wire:
12 gauge Maxx Cable

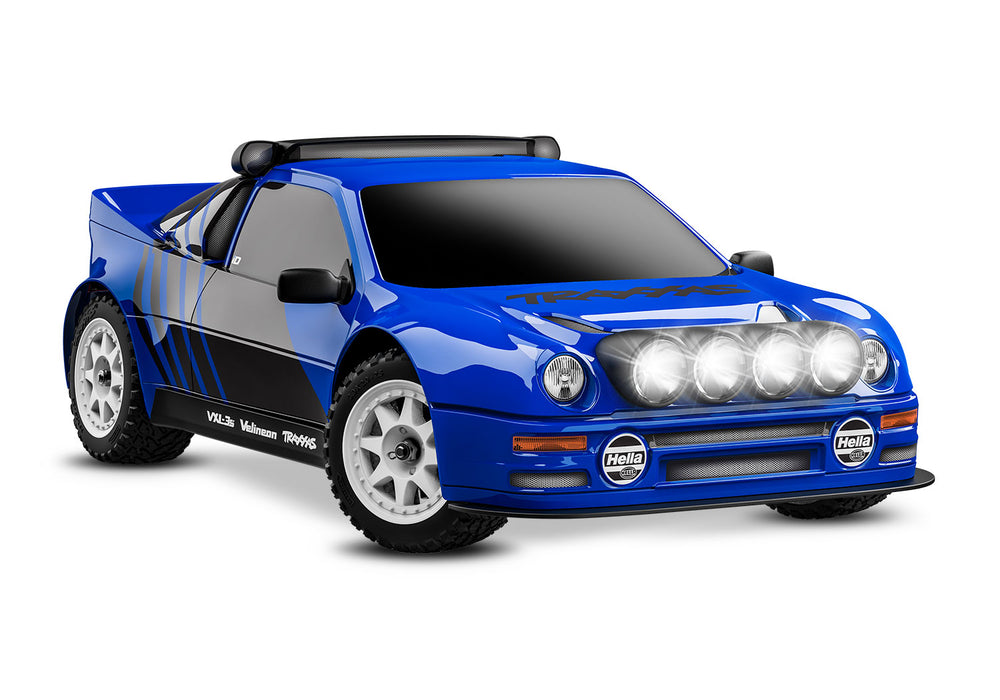

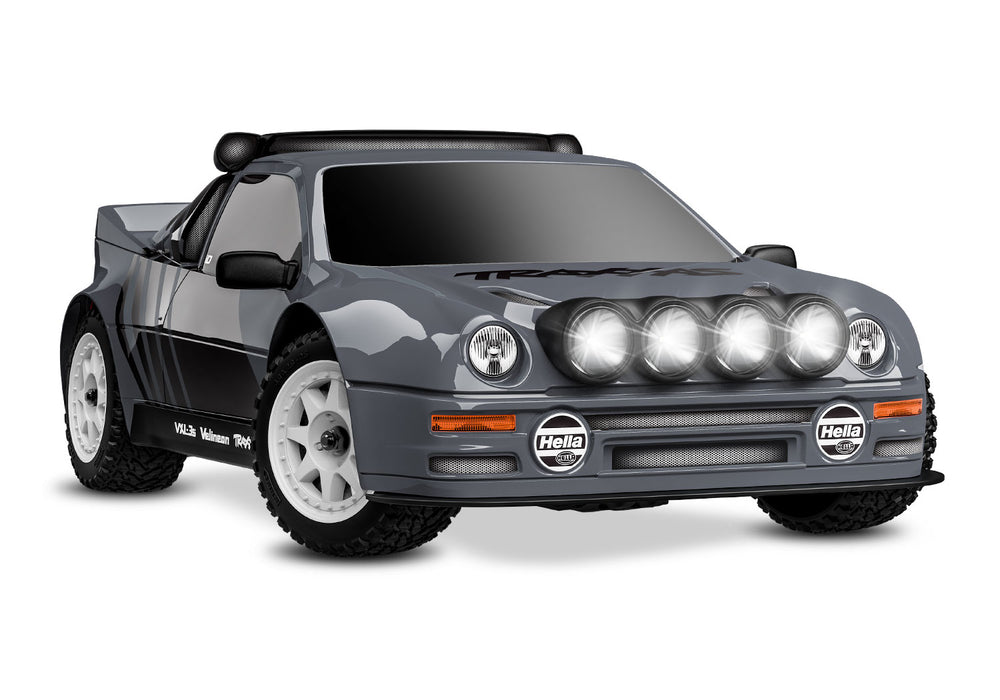

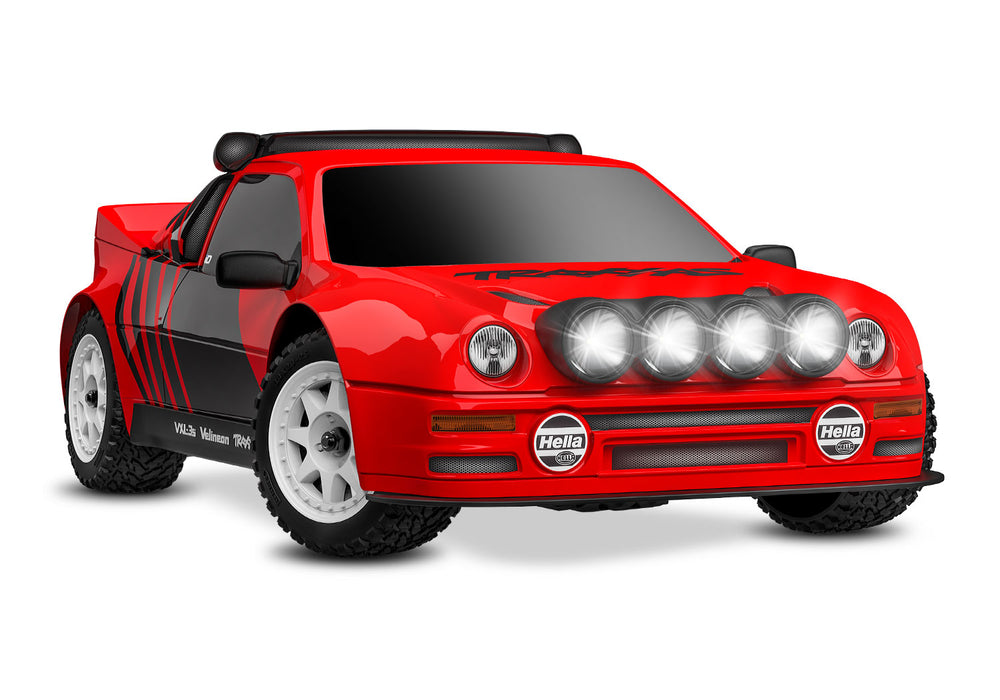

40+ mph with included 2-cell LiPo Battery 55+ mph with optional 3-Cell LiPo Battery (sold separately) Clipless Replica Ford RS200 Body
Quick and easy installation and removal
Reinforced side skirts
Tough front splitter
High-output LED light pods
Molded scale air intakes and side mirrors

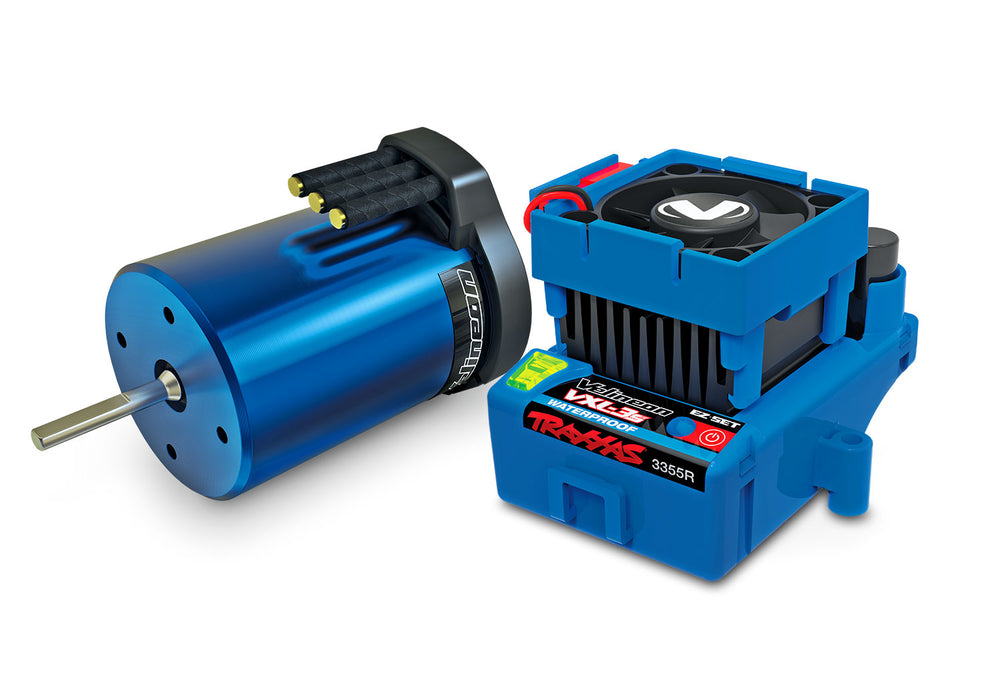

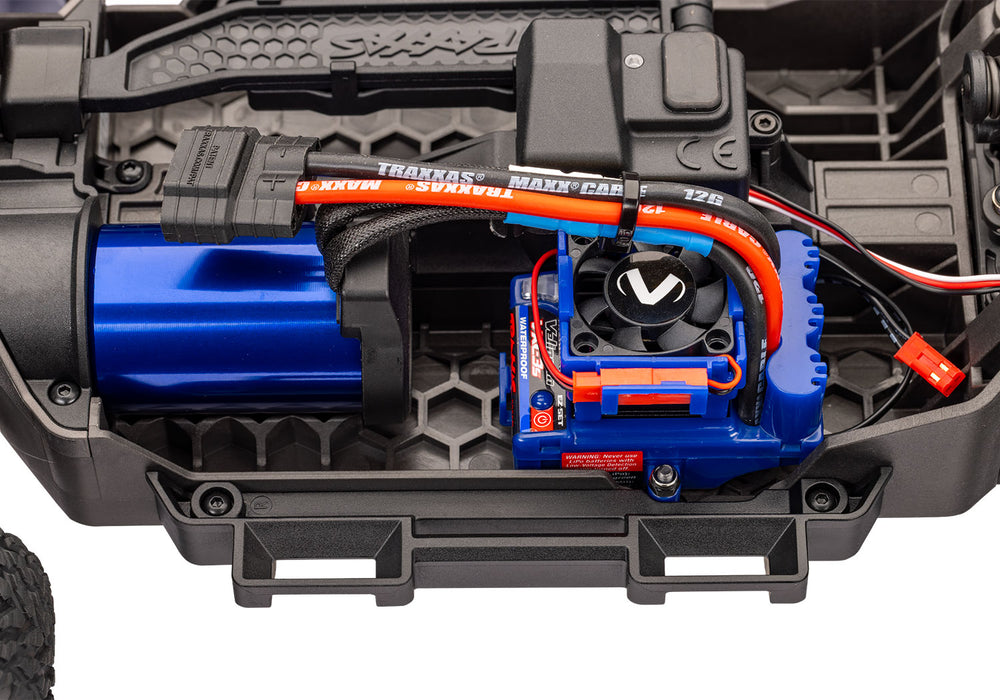

VXL-3s™ Waterproof Electronic Speed Control
Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse
Three programmable drive profiles
Heat sink with installed cooling fan
Traxxas EZ-Set® one-button setup
Built-in two-stage low-voltage detection
Velineon® 3500 Kv Brushless Motor
Ultra high-temperature sintered neodymium magnets
Low-maintenance design
Precision-balanced rotor
Efficient high-speed ball bearings
Brilliant blue-anodized finish
Battery and Charger Included
7.4 volts
3500 mAh capacity for extended run time
High-capacity 2-cell LiPo battery
2-amp USB-C charger
Traxxas iD® technology for faster, safer charging
TQi™ 2.4 GHz High Output 2-Channel Radio System
Programmable multi-function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity
Adjustable steering and throttle end points
5-channel micro receiver (6533) with fail-safe security
Patented waterproof receiver box with easy-access plug
Traxxas Stability Management® (TSM)
Improves straight line acceleration and braking on low-traction surfaces
Maintains steering composure to allow throttle-on powerslides
Never dulls throttle or slows the truck
Adjusts from off to 100% assistance from the transmitter
1/10 Scale AWD Driveline
Full-time shaft-driven all-wheel drive
1/10 scale extreme-duty telescoping driveshafts
Direct-drive (no transmission)
Sealed center differential
Large 32-pitch gears
Sealed planetary steel-gear differentials (F&R)
Fixed gear mesh system

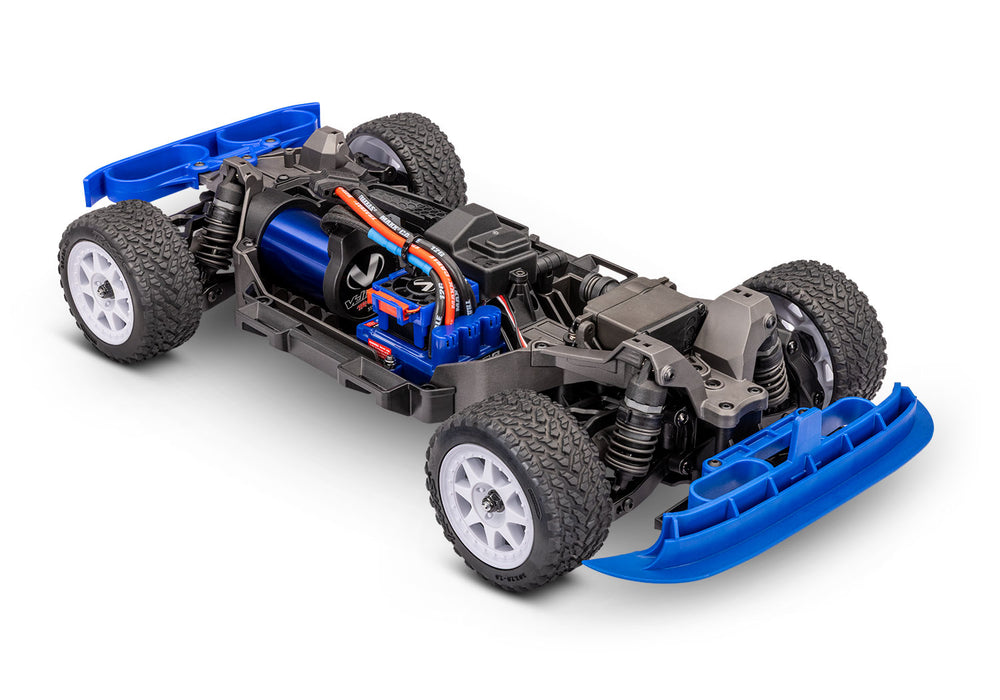

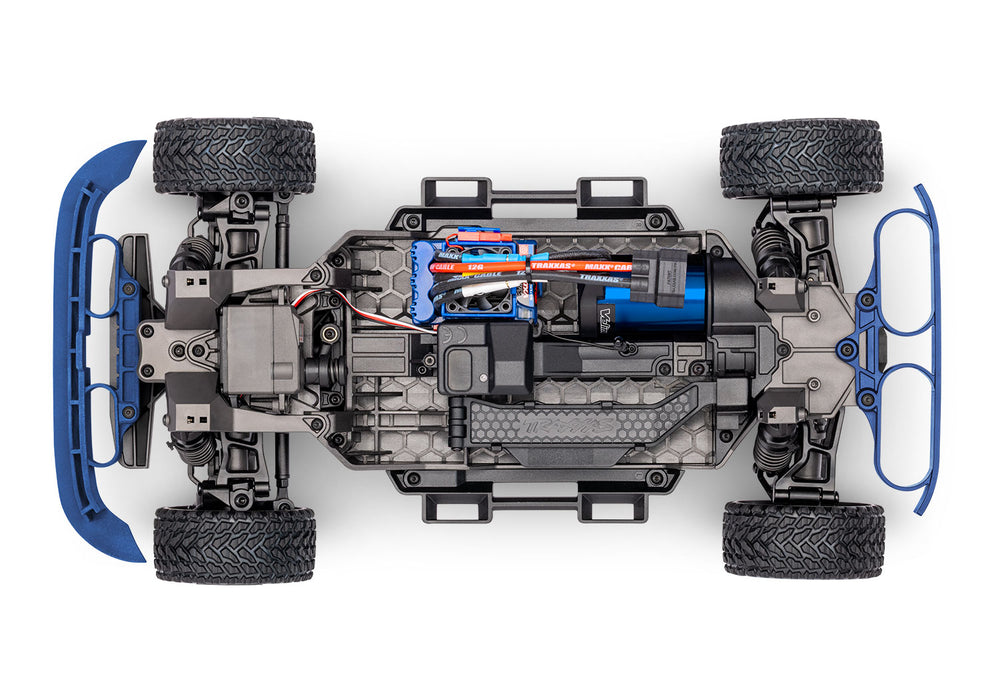

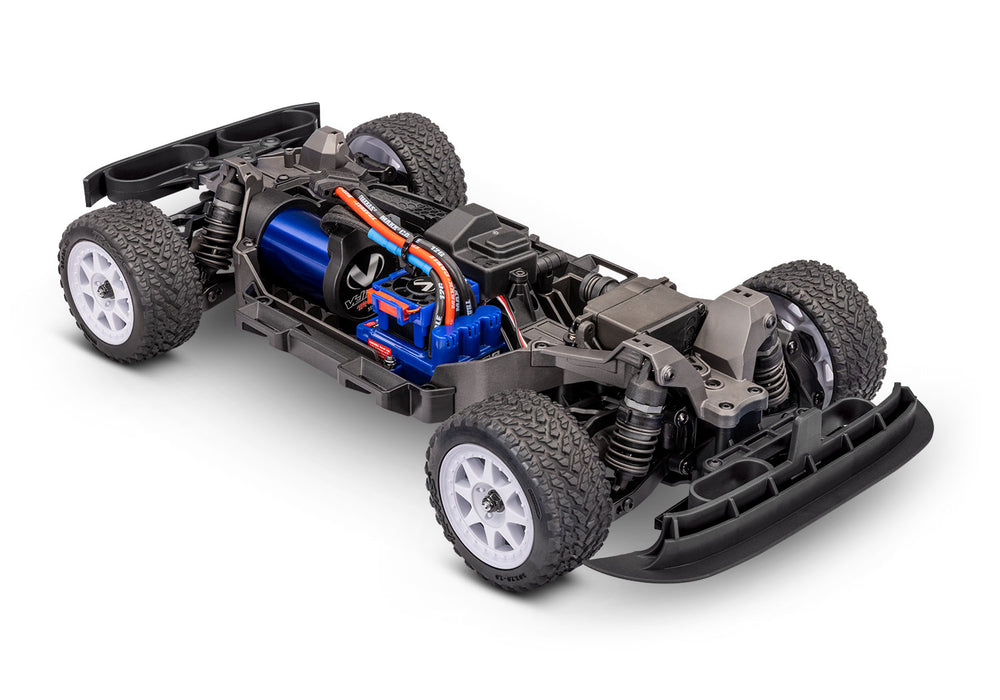

Modular Long-Wheelbase Chassis
Long 262 mm wheelbase for added stability and scale proportions
Modular interlocking front and rear bulkheads
Driveline is sealed in the chassis to keep out dirt
Absorbs and distributes impact energy
Easy to service and access components

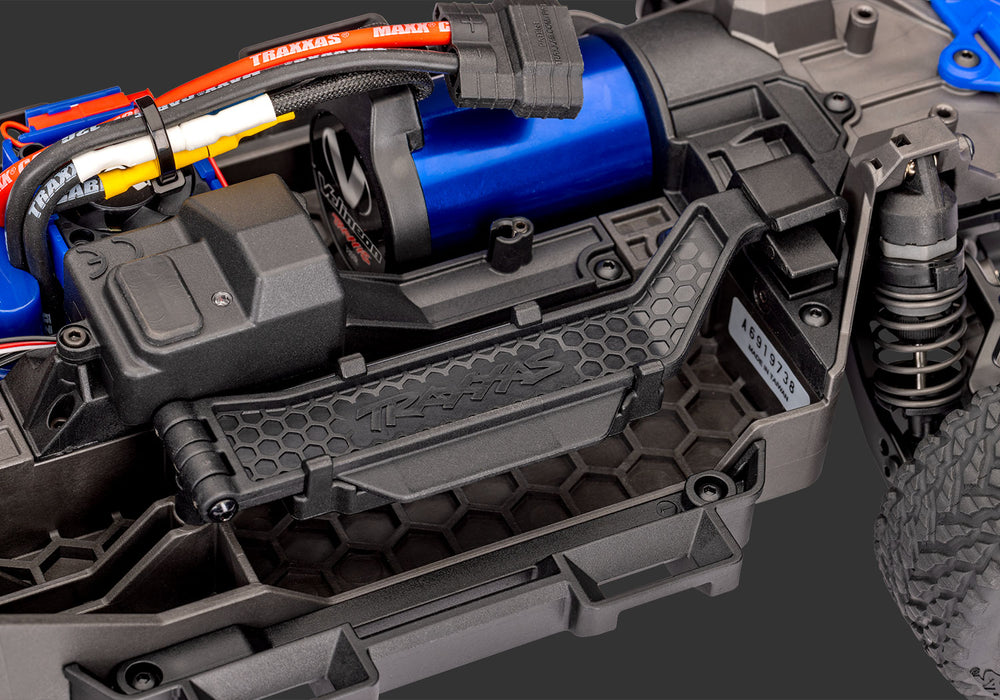

Easy Battery Access
Battery is protected deep in the chassis
Battery hold-down pivots for easy access
More secure than conventional retention systems
Steering
1/10 scale 2075X waterproof high-torque, metal-gear servo
Heavy-duty double-shear bellcranks
Cam-operated servo saver

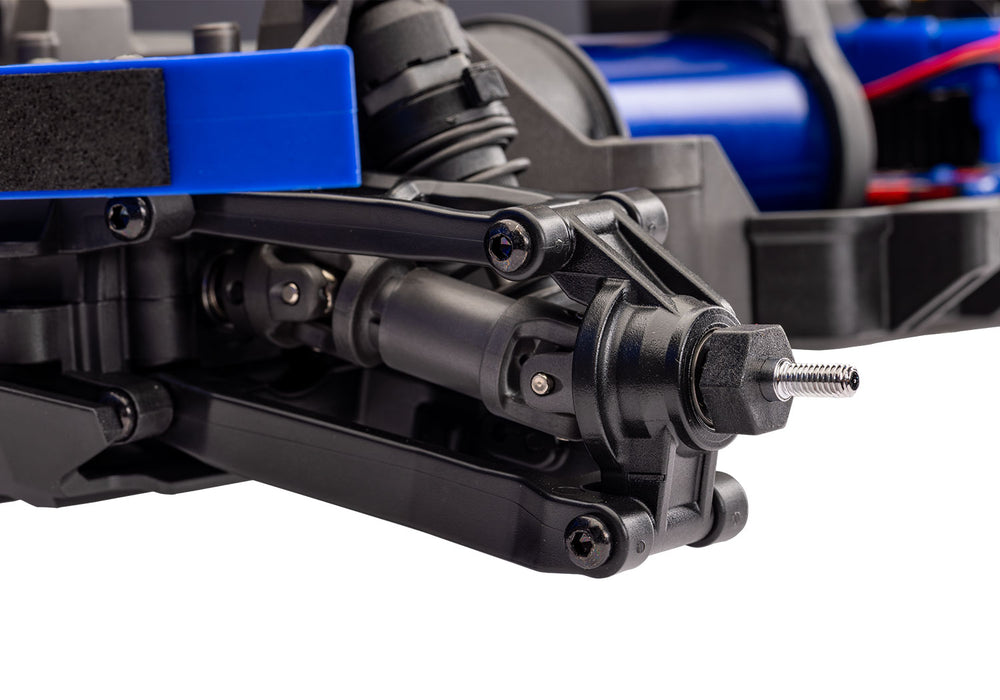

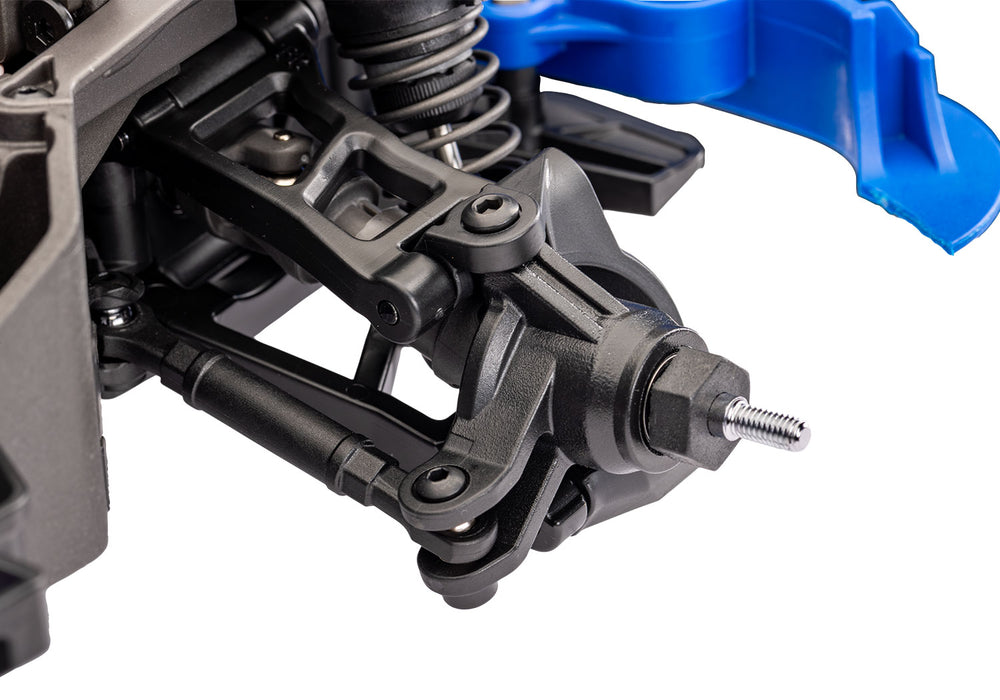

Suspension
Heavy duty, double-shear suspension arms
Dual wishbone design
Extra tough outer suspension components
Oil-Filled Ultra Shocks™
Full size 1/10 scale shocks
Large oil capacity
Easy to tune

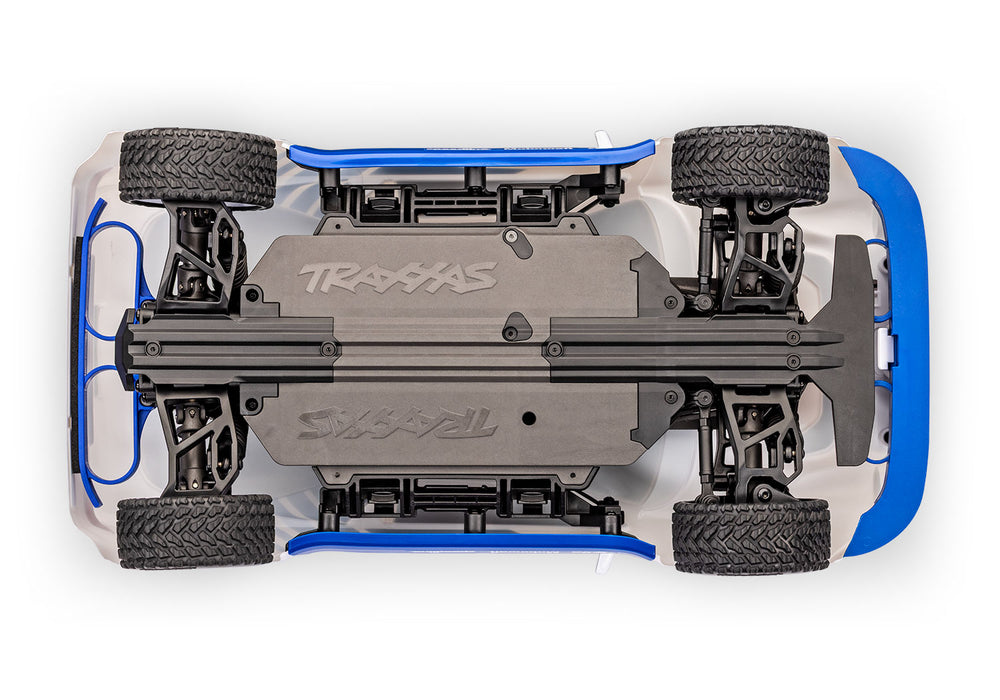

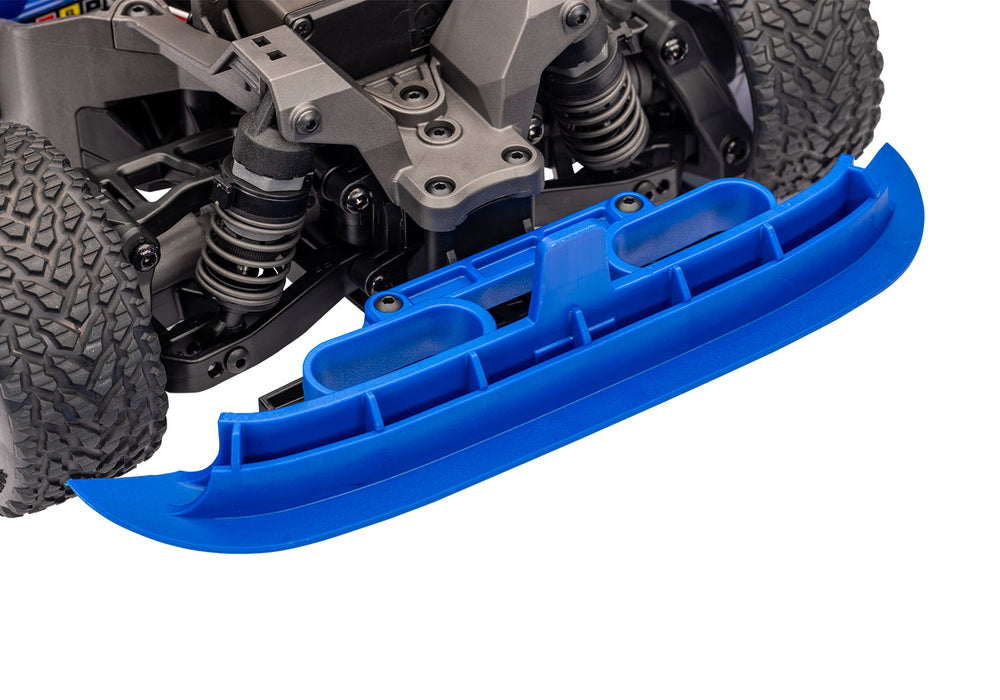

Front Splitter and Skid Plates
Reinforced front splitter absorbs impacts
Rugged interlocking skid plates
Smooth undertray eliminates snags

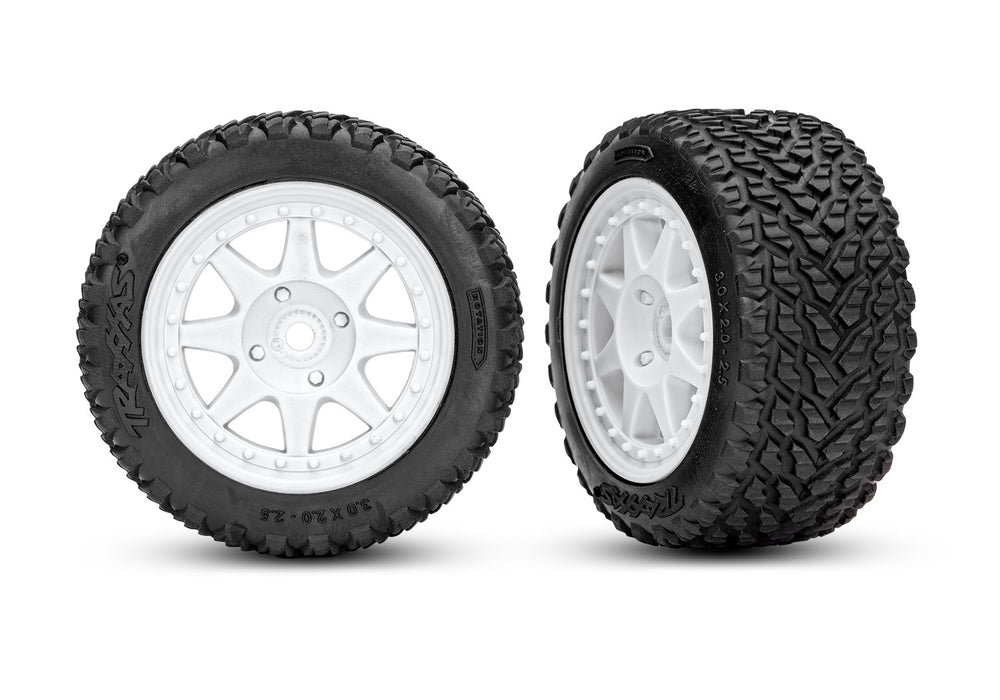

Wheels and Tires
Aggressive tread blocks for exceptional grip
Softer rear compound tires for balanced handling
White rally car wheels
High-traction rally tires
Hex Hardware with Rust-Resistant Black Oxide Coating Sealed Ball Bearings
What’s In The Box:
Mini Rally VXL with Clipless replica Ford RS200 body
Velineon VXL-3s brushless power system
3500 mAh 2-cell LiPo battery
2-amp USB-C charger
TQi 2.4 GHz radio system
Optional pinion gear
High quality maintenance tools
What You’ll Need:
