What comes in the box?
All editions come with

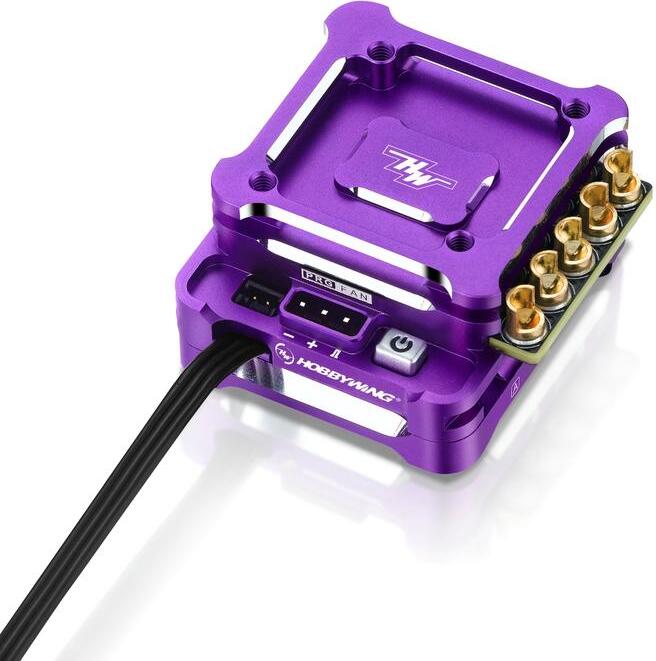

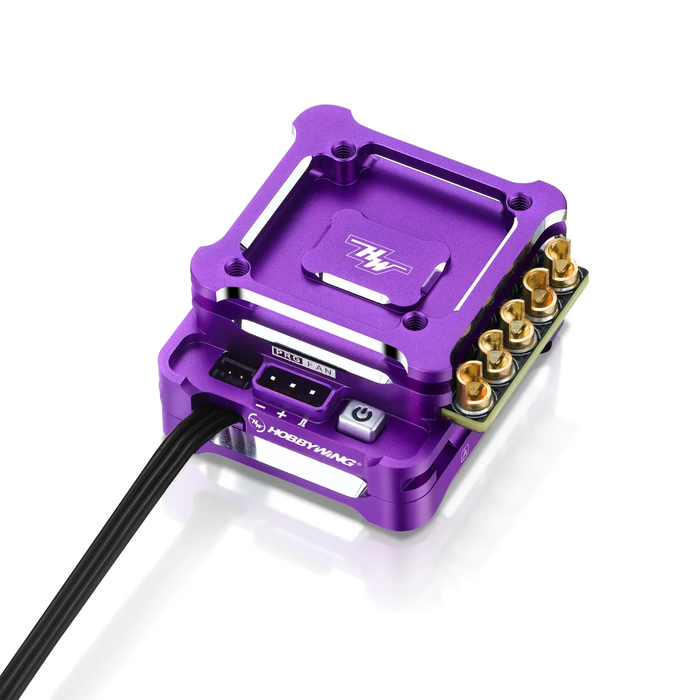

• XD10 PRO ESC
• (2) Input wires & (3) Output wires (PRE-SOLDERED)
• (1) x cooling fan
• Decals
• Bonus parts: heat tubes, double tape, nylon cable zap traps

Why you want this:

• Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
• A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
• Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
• Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
• Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
• Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)

Download

Xerun XD10 PRO ESC user manual

Specifications

Best paired with..

• HOBBYWING D10 Premium Motor (10.5T or 13.5T)
• OTA programmer
